4b - Install the Solar Panel (Triangular Base)

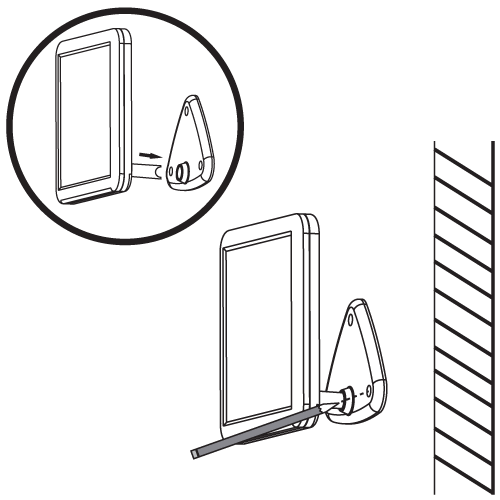

A) Determine position

Place the solar panel mounting bracket on the desired wall.

Mark with a pencil, the three pre-drilled holes in the mounting bracket on the wall.


B) Drill the Holes

Utilize a standard power drill to create the mounting holes.

C) Affix the Hardware

Place three plugs (BB) in the mounting holes.

Place the solar panel mounting bracket (B) over the three plugs (BB).

Use a Phillips screwdriver to screw in the three screws (AA) into the pre-drilled holes of the mounting bracket.
