4c - Install the Solar Panel (Rectangular Base)


A) Determine position

Place the solar panel mounting bracket on the desired wall.

Mark with a pencil, the four pre-drilled holes in the mounting bracket on the wall.


B) Drill the Holes

Utilize a standard power drill to create the mounting holes.

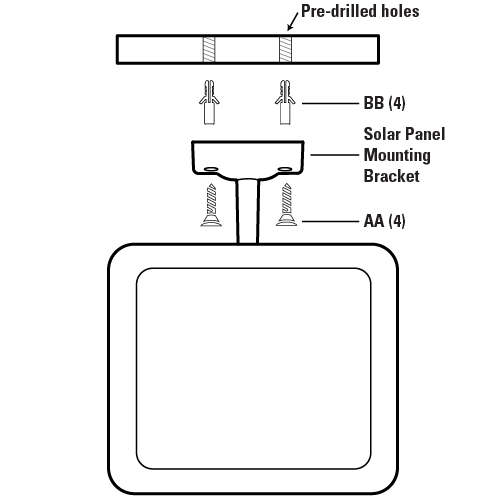

C) Affix the Hardware

Place four plugs (BB) in the mounting holes.

Place the solar panel mounting bracket over the four plugs (BB).

Use a Phillips screwdriver to screw in the four screws (AA) into the pre-drilled holes of the mounting bracket.
