5 - Install the Motion Light

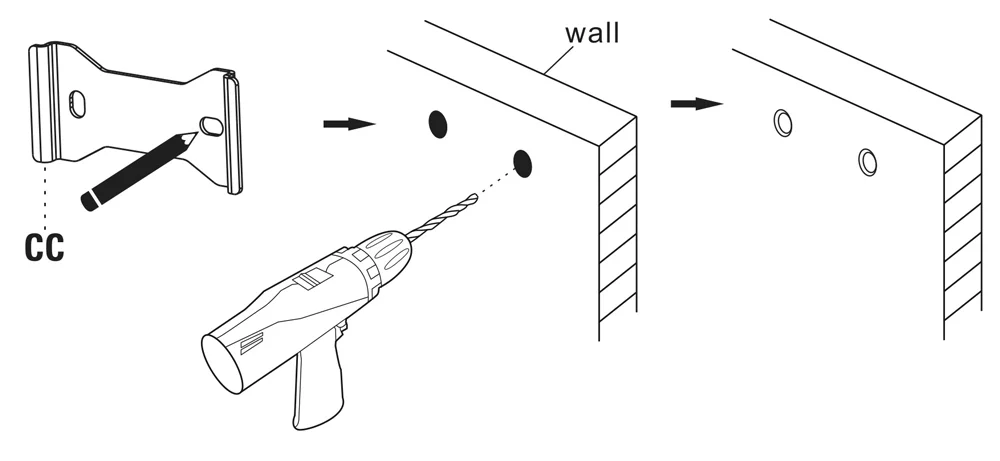

A) Place the Quick-Clip mounting bracket

Place the Quick-Clip mounting bracket (CC) on the desired wall.

Mark with a pencil, the two pre-drilled holes in the mounting bracket on the wall.

Utilize a standard power drill to create the mounting holes.

B) Install the Mounting Hardware

Place two plugs (BB) in the mounting holes.

Place the Quick-Clip mounting bracket (CC) over the two plugs (BB).

Use a Phillips screwdriver to screw in the two screws (AA) into the pre-drilled holes of the Quick-Clip mounting bracket.

NOTE: The concave side of the Quick-Clip mounting bracket should be facing toward you, with the convex side facing the wall.

C) Mount the Light

Once the Quick-Clip mounting bracket (CC) is installed, ensure all the screws are tightly fastened. The Security Light is now ready to be set into place.

Slide the light hook down into the Quick-Clip.
